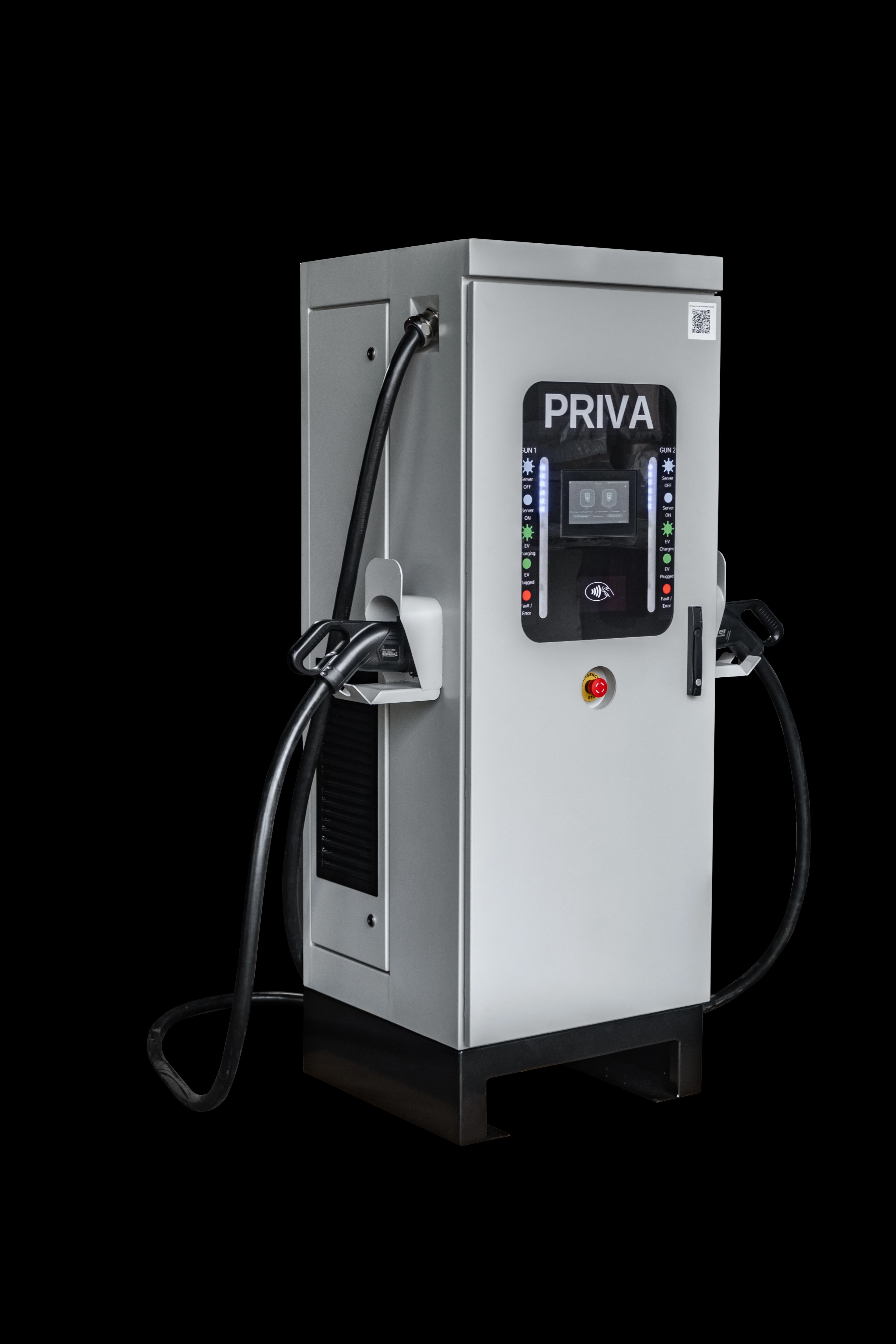

240 KW DC EV Charger
CCS2 | Dual Gun
4-wheeler / commercial EV
Power Input
- Power Connection: 3 P + N + PE
- Input Voltage: 415 V AC ± 10% Three-phase supply
- Frequency | Power Factor: 50 Hz ± 10% | >0.98 (0.9993)
Power Output
- Rated Power: 240 kW = 120 KW X 2 with Dynamic Load Balancing
- Output Current / Voltage: 150VDC - 1000 VDC
- No. of Output: 2 (CCS2)
- Compliance: DIN 70121 | ISO / IEC 15118 | CCS2 | IEC 61851-1 | IS17017
Safety Features
- Over / Under Current, Over / Under Voltage, Surge Protection, Short Circuit Protection, Earth-Leakage, Ground Fault, Smoke detector, Temperature sensor, IP54 rated, Emergency Stop Button
USER INTERFACE & COMMUNICATION
- Display: 7" HMI Display, LED indication
- User Authorization: Web based software, OCPP, RFID
Environment & Mechanical Design
- Operating Temperature: -20°C to 70°C
- Storage Temperature: -40°C to 70°C
- Cooling: Natural Cooling, Forced cooling for Power modules
- Length of charging gun: 5m
- Dimension: 1704 * 650 * 615 mm
- Installation: Ground mounted with Civil work
- Approximate weight: Around 250 - 300 kg
